G48 Bench Mount Hand Press

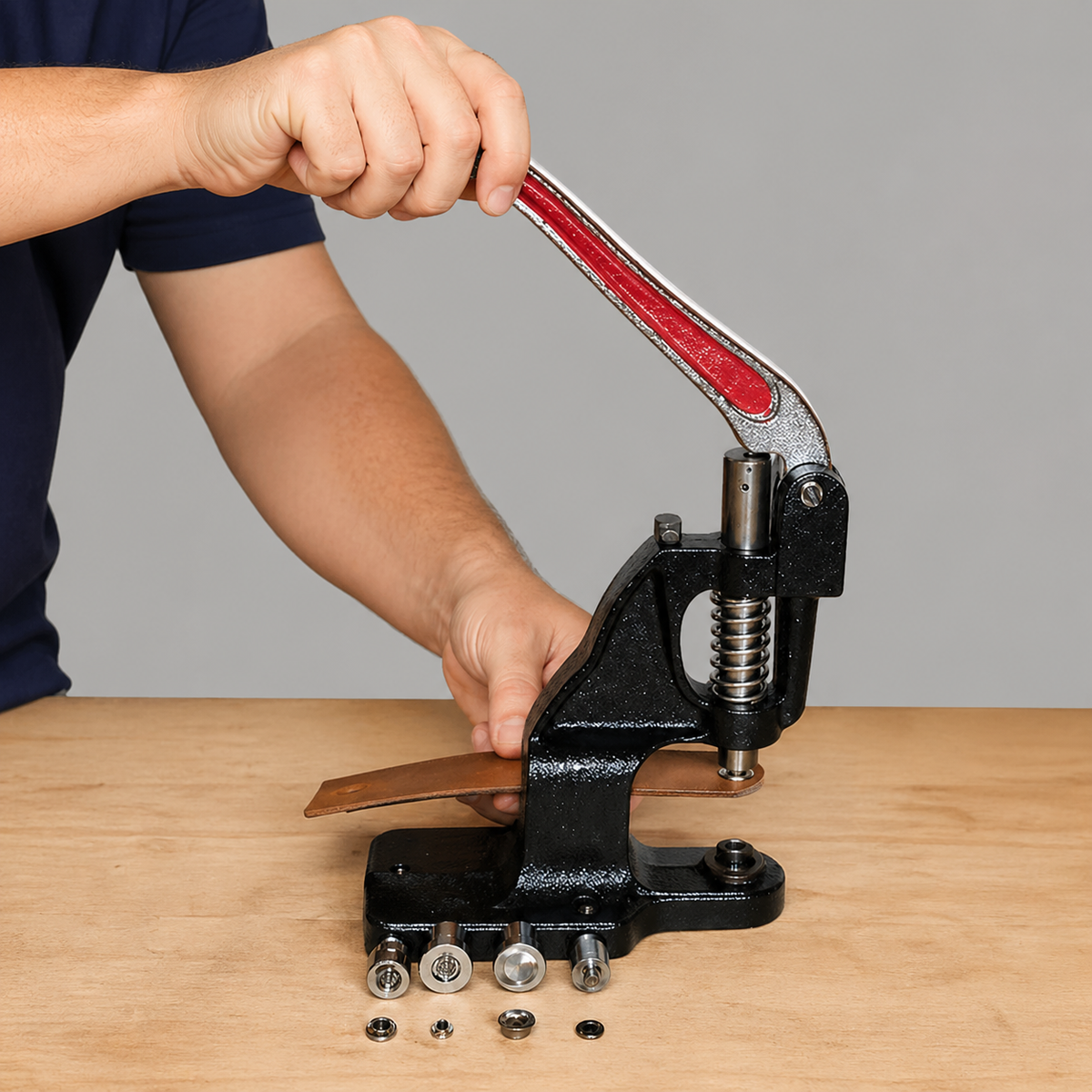

The G48 is a bench mount hand press designed to attach a wide variety of metal and plastic fasteners. Constructed from cast iron and steel, this attaching machine is a true all-around workhorse — built for repeated, reliable use in professional workshops and production environments.
Key Features
-
Interchangeable dies — accepts a wide range of hole punches and setting dies for multiple fastener applications, increasing the versatility and value of the machine
-
Large base surface area — provides a stable platform that can be easily mounted on a sturdy table or workbench
-
Cast iron and steel construction — built for durability and consistent setting force
- Available in two sizes: Standard (G48S) and Large (G48L)

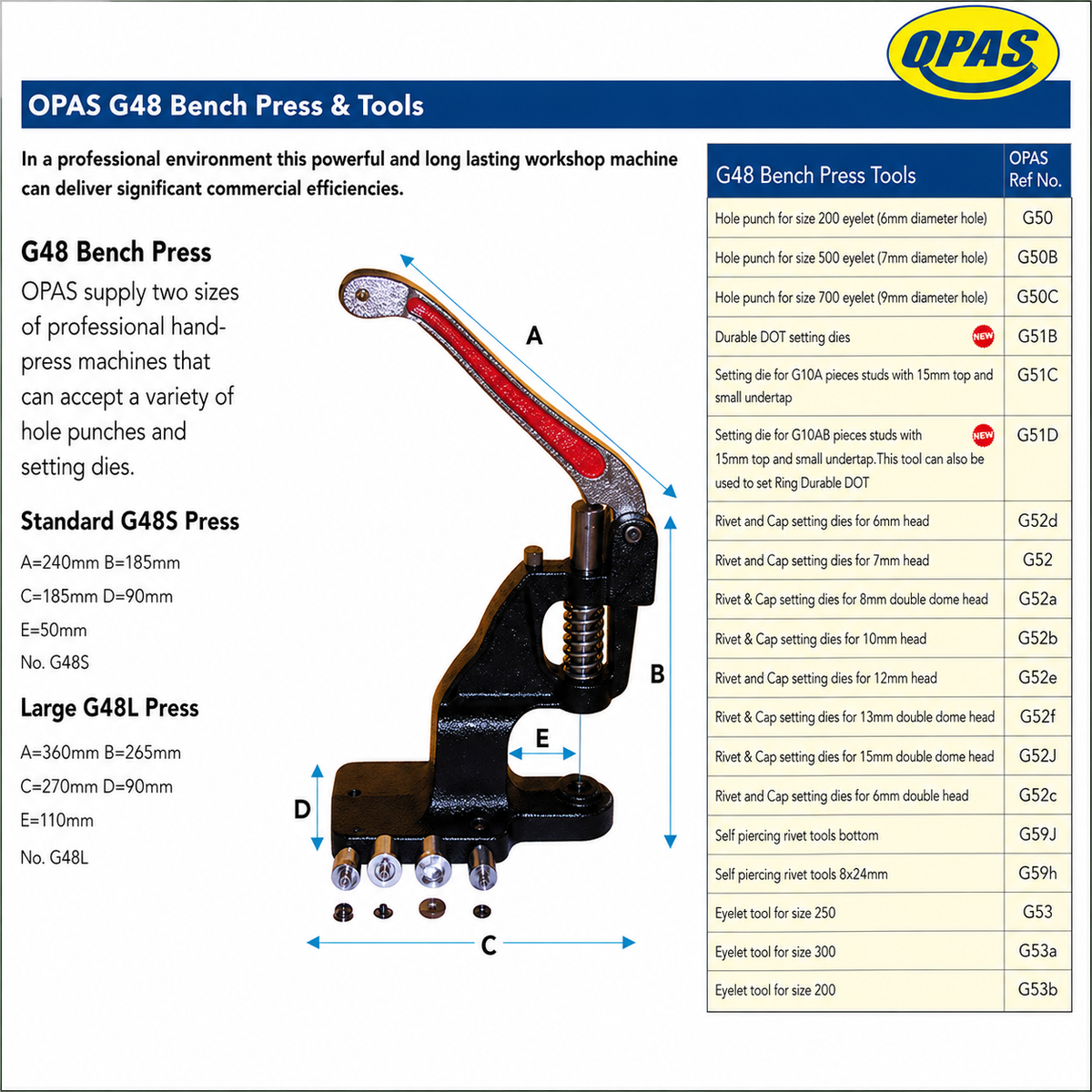

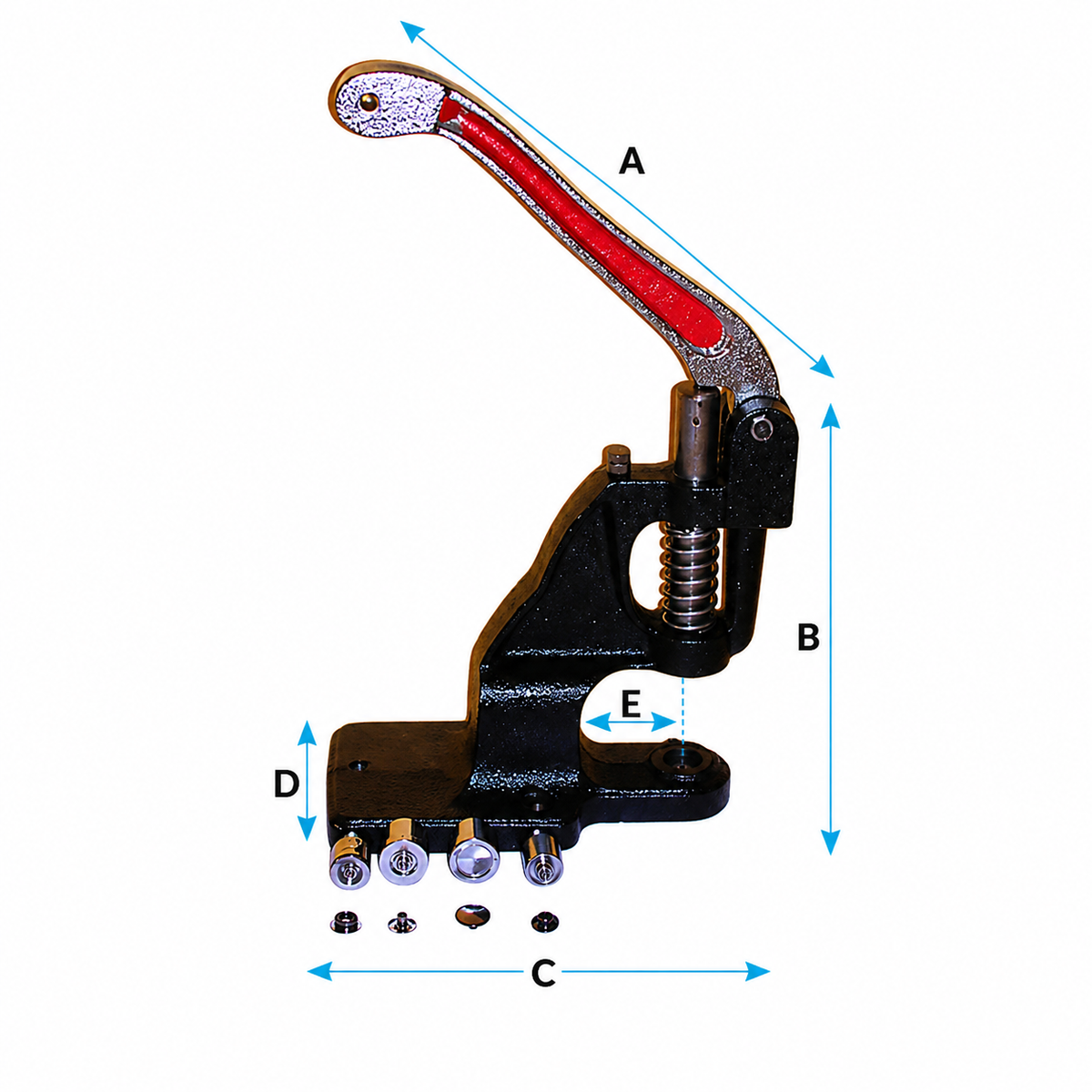

Dimensions
| Dimension |
Standard (G48S) |
Large (G48L) |
| A – Lever Arm Length |
240mm |
360mm |
| B – Body Height |
185mm |
265mm |
| C – Base Length |
185mm |
270mm |
| D – Base Width |
90mm |
90mm |
| E – Throat Depth |
50mm |
110mm |
Compatible Dies & Accessories
A full range of setting dies, hole punches, and press stud dies are available separately for use with the G48 press.
